Teflon insulated conductive microcables

Short Description:

PFA/Teflon insulated conductive wire ultra-fine, flexible, bend-resistant,ultra-low resistance and high-temperature drying-resistant,long life washable tag wires, To add outer insulation coating is flexible / durable,resistant to high temperature,resistant to bending and washable.


Product Detail

PFA coated steel filament heating wire
PFA Coated Steel Filament Heating Wire
Teflon insulated conductive wire
 ultra-fine, flexible, bend-resistant,ultra-low resistance and high-temperature drying-resistant,long life washable tag wires, To add outer insulation coating is flexible / durable,resistant to high temperature,resistant to bending and washable.
PFA Coated Steel Filament Heating Wire

PFA Coating material Main feature:
PFA
 also called soluble polytetrafluoroethylene (soluble PTFE), the properties of PFA are similar to PTFE and FEP. It is a copolymer of a small amount of perfluoropropyl perfluorovinyl ether and polytetrafluoroethylene.

PFA is (soluble polytetrafluoroethylene) excellent in heat resistance, cold resistance, chemical stability, mechanical properties, insulating properties, self-lubricating properties, folding resistance, and crack resistance.

PFA physical properties:
PFA has a melting point of about 580F and a density of 2.13-2.16 g/cc (grams per cubic centimeter)., 260ºC long term working temperatues.

PFA is similar to PTFE and FEP, but has slightly better mechanical properties than FEP above 302T, can be used at temperatures up to 500F, and has comparable chemical resistance to PTFE.

Stainless steel Filaments Main feature:

Good electrical conductivity, high strength, high elasticity, wear resistance, corrosion resistance and excellent thermal stability in an oxidizing atmosphere, excellent thermal conductivity, eliminate static electricity,non-combustible,high temperature resistance, radiation protection, sound absorption, UV protection, filter-ability , good cushioning, high cutting strength, High permeability, good malleability.

Depending on the specific characteristics and needs of your application, stainless steel wires can be customized:
A- stainless steel multi-filaments
B- steel core with an outer layer of nickel, zinc or copper
For electrical insulation the cable can also be protected by a protective outterlayer.
A wide range of electrical resistances is available

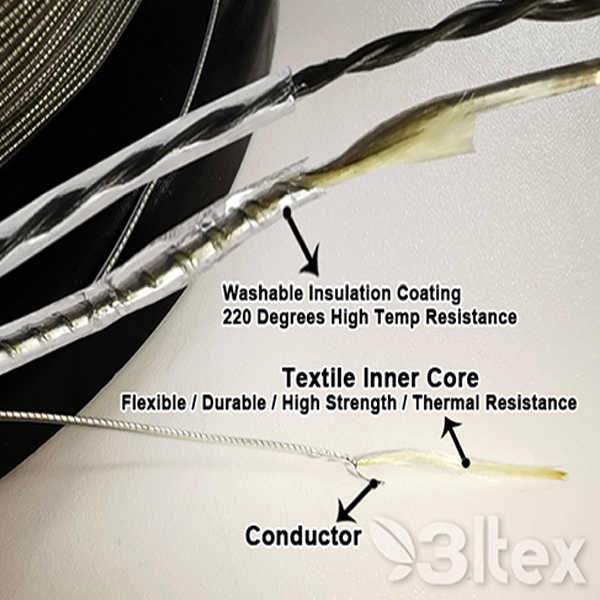

RFID-tags-conductive-wire

Mainly RFID flexible washing tags are applied RFID radio frequency identification technology.By sewing a strip-shaped electronic washing tag on each linen,the tag has a globally unique identification code and can be used repeatedly.In the entire linen use and washing management, it is read in batches by RFID readers and automatically records the linen use state and washing times. Makes the transfer of washing tasks simple and transparent, reducing business disputes. At the same time, by tracking the washing times, users can estimate the service life of the current linen and provide forecast data for the purchase plan.

application1

Shielday technology Company has developed ultra-fine, flexible, bend-resistant,ultra-low resistance and high-temperature drying-resistant,long life washable tag wires, To add outer insulation coating is flexible / durable,resistant to high temperature,resistant to bending and washable.

application2

Its performance remains unchanged after drying and ironing at over 220 degrees to ensure safe, reliable and efficient data transmission.
